Best-fit applications
Mobile inventory, retail, field service, parcel handling, and other workflows that need flexible wireless scanning.
San Cristobal Bolivarian Republic of Venezuela +9855 677 8345 manster420@example.com
HC-1800

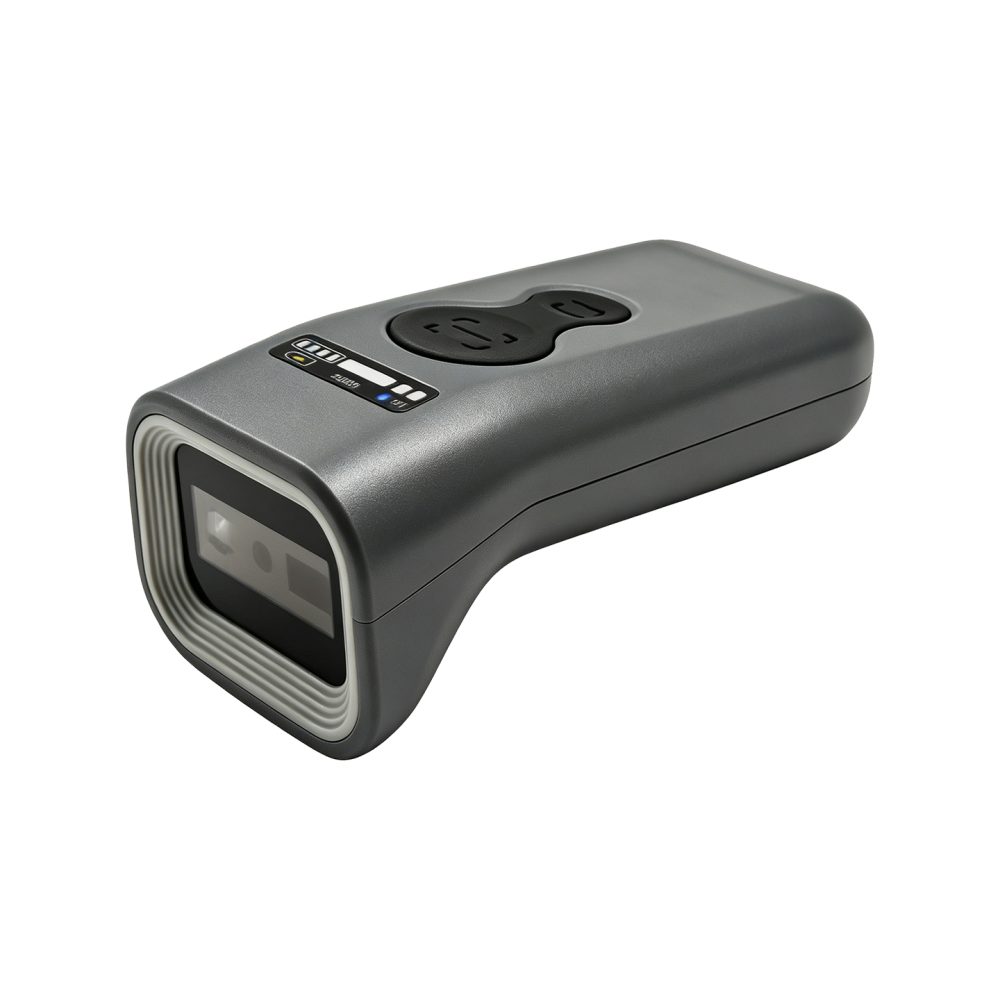

HC-1800 Wireless Portable Barcode Scanner
Wireless Portable Barcode Scanners / HC-1800
HC-1800 is a wireless portable barcode scanner featuring CMOS 640×480 Global Shutter 120fps, USB;2.4G; Bluetooth, ≥4mil.
- Sensor
- CMOS 640×480 Global Shutter 120fps
- Resolution
- ≥4mil
- Interfaces
- USB;2.4G; Bluetooth
- Battery Capacity
- 1100/2000mAh
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose HC-1800
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
Supports USB, Bluetooth, 2.4G
- 02
Two battery specifications: 1100/2000mAh, meeting the needs of various usage scenarios.
- 03
Powerful scanning perform recognizing 1D/2D barcodes, screen codes, and courier barcodes.
- 04
Three feedback modes: buzzer, indicator light, and vibration, preventing mssed scans.
- 05
Compatible with PDAs, smartphones, and PDA applications.
- 06
Main and secondary button design; the secondary button includes scan mode and communication function switching.
Product details
Technical specifications
Physical Parameters
- Size
- 74mm×74mm×127mm
- Weight
- 89g
- Voltage
- DC5V 5%
- Battery Capacity
- 1100/2000mAh
- Interfaces
- USB;2.4G; Bluetooth
- Scan Feedback
- Indicator light; Buzzer; Vibration
Performance Parameters
- Sensor
- CMOS 640×480 Global Shutter 120fps
- Resolution
- ≥4mil
- Light Source
- Aiming:Red LED; Illumination:White LED
- Continuous Working Time
- 10H(Continuous scanning at 5-second intervals)
- Operating Distance
- Open Distance 0-60m
- Charging Duration
- 5-6H
- Field of View
- 34°(H)×26°(V)
- Pitch / Skew / Roll
- Pitch:±55°, Skew:±55°, Roll: 360°
- Print Contrast
- ≥25%
- Depth of Field - EAN-13
- 60mm-280mm(13mil)
- Depth of Field - PDF417
- 30mm-140mm(6.67mil)
- Depth of Field - Code39
- 40mm-110mm(5mil )
- Depth of Field - Data Matrix
- 40mm-250mm(10mil)
Decoding Types
- 1D Code
- EAN, UPC,Code 39,Code 93,Code 128, Codabar,Matrix 2 of 5, Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-Plessey, Databar,Code 11,Industrial 2 of 5,Standard 2 of 5,Matrix 2 of 5
- 2D Code
- QR Code, Data Matrix, PDF417,Aztec, Micro QR, Micro PDF417, Maxi Code,Hanxin
Environmental Parameters
- Operating Temperature
- -20℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5% to 95% non-condensing
- Shock Resistance
- Designed to withstand 1.5m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where HC-1800 fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about HC-1800
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can HC-1800 read?
HC-1800 supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: QR Code, Data Matrix, PDF417,Aztec, Micro QR, Micro PDF417, Maxi Code,Hanxin.
02Which interfaces are available for HC-1800?
Available interface options include USB;2.4G; Bluetooth. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is 60mm-280mm(13mil). Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is HC-1800 right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
