Best-fit applications
Hands-free picking, manufacturing lines, warehouse operations, and logistics workflows where mobility matters.
San Cristobal Bolivarian Republic of Venezuela +9855 677 8345 manster420@example.com
W-330

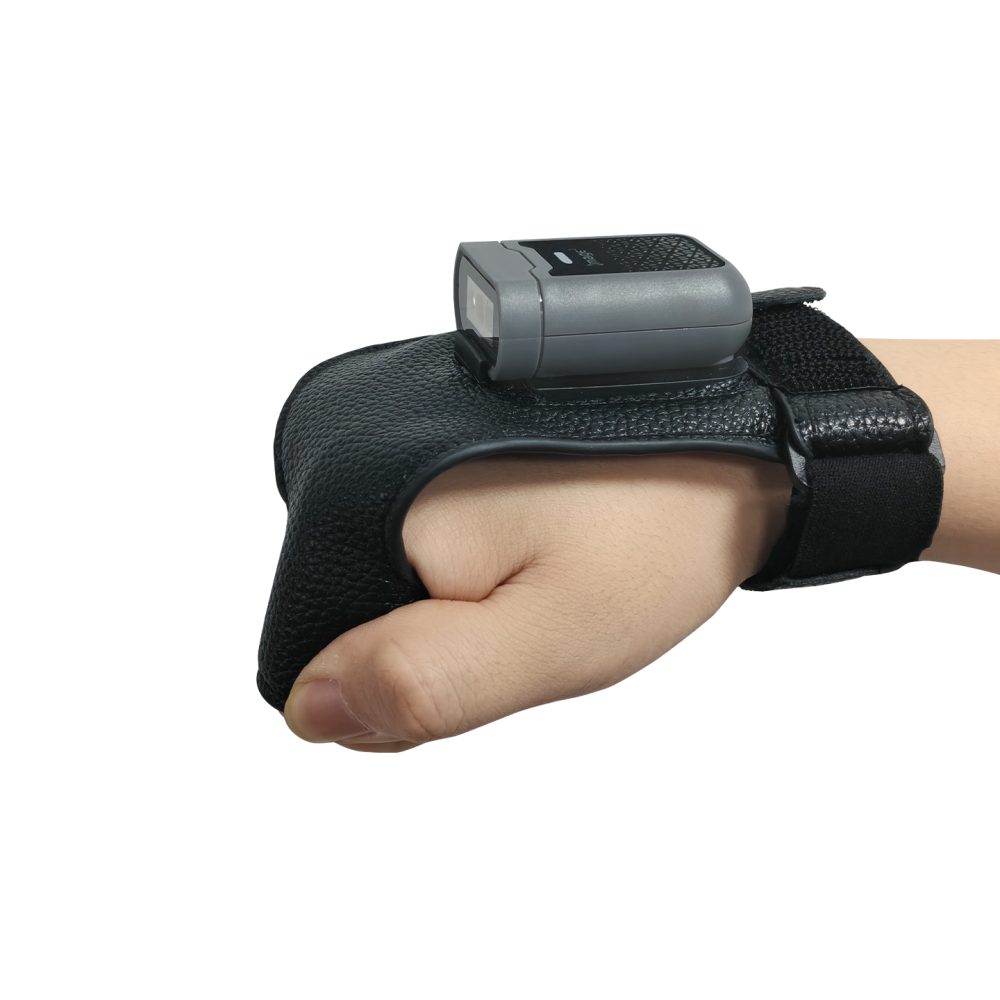

W-330 Glove Barcode Scanner
Wearable Barcode Scanners / W-330
W-330 is a wearable barcode scanner featuring CMOS 640×480 100fps, USB;2.4G; Bluetooth, >4mil.
- Sensor
- CMOS 640×480 100fps
- Resolution
- >4mil
- Interfaces
- USB;2.4G; Bluetooth
- Battery Capacity
- 670mAh
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose W-330
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
Supports 2.4G and Bluetooth.
- 02
670mAh battery capacity, the largest among similar products.
- 03
High-quality materials, comfortable to wear, and easy to operate buttons.
- 04
Supports optional scanning modules to meet customization requirements.
- 05
Compatible with all mainstream operating systems, connectable to mobile phones, computers, tablets, industrial computers, and other devices.
- 06
Suitable for manufacturing, warehouse management, and logistics.
Product details
Technical specifications
Physical Parameters
- Size
- Main body 53mm×38mm×21mm Glove 80mm×165mm
- Weight
- 65.5g
- Voltage
- DC5V 5%
- Battery Capacity
- 670mAh
- Interfaces
- USB;2.4G; Bluetooth
- Scan Feedback
- Indicator light; Buzzer
Performance Parameters
- Sensor
- CMOS 640×480 100fps
- Resolution
- >4mil
- Light Source
- Aiming:Red LED; Illumination:White LED
- Continuous Working Time
- 6H (Continuous scanning at 5-second intervals)
- Operating Distance
- Open Distance 0-60m
- Charging Duration
- 2-3H
- Field of View
- 27°(H)×28°(V)
- Pitch / Skew / Roll
- Pitch:±55°, Skew:±55°, Roll: 360°
- Print Contrast
- ≥20%
- Depth of Field - EAN-13
- 60mm-350mm(13mil)
- Depth of Field - PDF417
- 45mm-140mm(6.67mil)
- Depth of Field - Code39
- 45mm-125mm(5mil )
- Depth of Field - QR Code
- 45mm-175mm(20mil)
- Depth of Field - Data Matrix
- 55mm-130mm(10mil)
Decoding Types
- 1D Code
- Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, Code 11, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Industrial 2 of 5, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Standard 2 of 5, Plessey, MSI-Plessey, GS1 composite code, etc
- 2D Code
- PDF417, Data Matrix, QR Code, Han Xin Code, Aztec Code, MaxiCode, GM Code
Environmental Parameters
- Operating Temperature
- -20℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5% to 95% non-condensing
- Shock Resistance
- Designed to withstand 1.5m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where W-330 fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about W-330
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can W-330 read?
W-330 supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: PDF417, Data Matrix, QR Code, Han Xin Code, Aztec Code, MaxiCode, GM Code.
02Which interfaces are available for W-330?
Available interface options include USB;2.4G; Bluetooth. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is 60mm-350mm(13mil). Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is W-330 right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
