Best-fit applications
Self-service kiosks, smart lockers, access control, payment terminals, industrial automation, and embedded equipment.
San Cristobal Bolivarian Republic of Venezuela +9855 677 8345 manster420@example.com
EM432

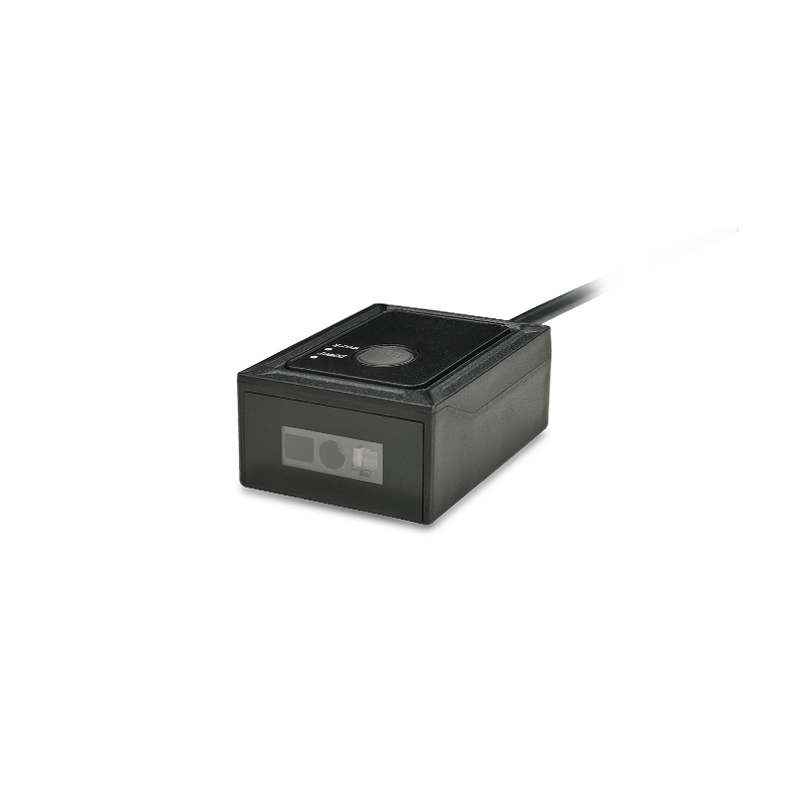

EM432 Fixed Mount Barcode Scanner
Fixed Mount Barcode Scanners / EM432
EM432 is a fixed mount barcode scanner featuring CMOS 640x480, USB-KBW; USB-COM; USB-POS; Customizable:TTL232; RS232; RS485, ≥5mil 1D code.
- Sensor
- CMOS 640x480
- Resolution
- ≥5mil 1D code
- Interfaces
- USB-KBW; USB-COM; USB-POS; Customizable:TTL232; RS232; RS485
- Size
- 49.5mm×41.2mm×24mm
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose EM432
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
A balanced choice of performance and cost.
- 02
Fully reads all mainstream 1D and 2D barcodes.
- 03
Quickly read product codes and payment codes.
- 04
Supports RS232、RS485 and USB interfaces.
- 05
Accurately read special barcodes such as damaged codes, stained codes, and reflective codes.
- 06
Suitable for supermarkets, express delivery, factories, assembly lines, self-service lockers, and turnstile ticket gates.
Product details
Technical specifications
Physical Parameters
- Size
- 49.5mm×41.2mm×24mm
- Voltage
- DC5V 5%; Wide voltage (4.5-36V) (Customizable )
- Interfaces
- USB-KBW; USB-COM; USB-POS; Customizable:TTL232; RS232; RS485
- Scan Feedback
- Indicator light; Buzzer
Performance Parameters
- Sensor
- CMOS 640x480
- Resolution
- ≥5mil 1D code
- Scan Speed
- >0.3m/s
- Light Source
- Aiming:Red LED（(625nm+10nm); Illumination:Red LED
- Field of View
- 34°(H) ×26°(V)
- Pitch / Skew / Roll
- Pitch:±55°, Skew:±55°, Roll: 360°
- Print Contrast
- ≥20%
- Depth of Field - EAN-13
- EAN-13 60mm~260mm(13mil)
- Depth of Field - PDF417
- PDF417 45mm~140mm(6.7mil)
- Depth of Field - Code39
- Code39 55mm~100mm(5mil)
- Depth of Field - Data Matrix
- Data Matrix 25mm~70mm(10mil)
- Depth of Field - QR Code
- OR Code 35mm~260mm(20mil)
Decoding Types
- 1D Code
- Interleaved 2 of 5,ITF-6,ITF-14,MSI-Plessey,ISBN, GS1 Databar, ISSN,Code39,Code128,Codabar,Code93,EAN13,UPC,Code 11, Industrial 2 of 5,Standard 2 of 5, Matrix 2 of 5
- 2D Code
- QR Code, Data Matrix,PDF417,Micro QR, Aztec, Micro PDF417, Maxi Code,Hanxin
Environmental Parameters
- Operating Temperature
- -20℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5% to 95% non-condensing
- Shock Resistance
- Designed to withstand 1.8m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where EM432 fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about EM432
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can EM432 read?
EM432 supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: QR Code, Data Matrix,PDF417,Micro QR, Aztec, Micro PDF417, Maxi Code,Hanxin.
02Which interfaces are available for EM432?
Available interface options include USB-KBW; USB-COM; USB-POS; Customizable:TTL232; RS232; RS485. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is EAN-13 60mm~260mm(13mil). Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is EM432 right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
