Best-fit applications
Retail checkout, warehouse receiving, manufacturing, ticketing, healthcare, and general-purpose barcode capture.
San Cristobal Bolivarian Republic of Venezuela +9855 677 8345 manster420@example.com
HC-700

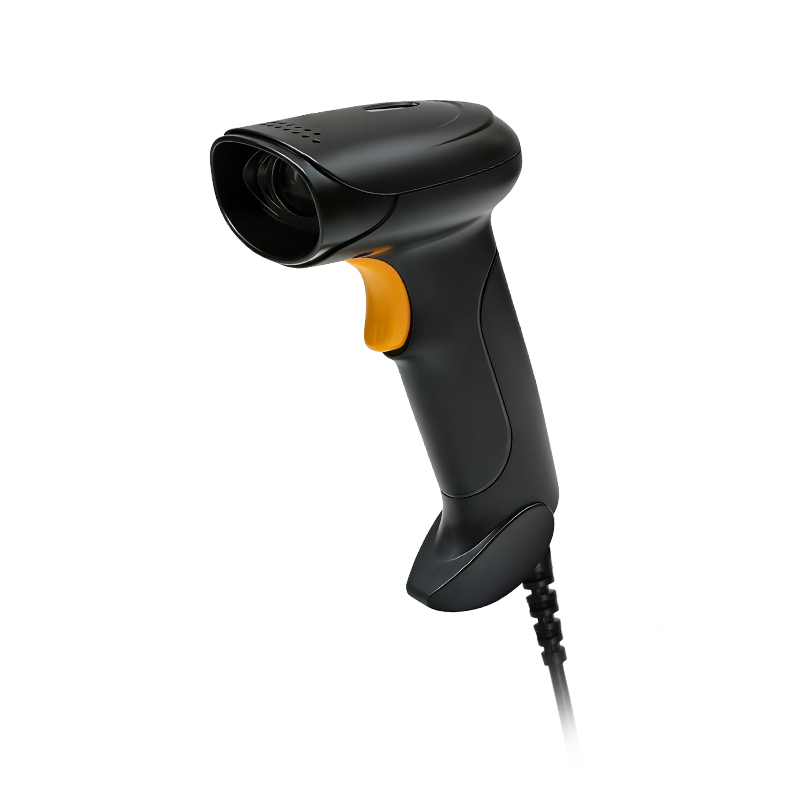

HC-700 Wired Handheld Barcode Scanner
Handheld Barcode Scanners / HC-700
HC-700 is a wired handheld barcode scanner featuring CMOS 640×480, USB, ≥5mil.
- Sensor
- CMOS 640×480
- Resolution
- ≥5mil
- Interfaces
- USB
- Size
- 162.6mm×88.3mm×66mm
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose HC-700
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
Excellent value, Simple and easy to use.
- 02
Comfortable grip, suitable for long-term use.
- 03
Adapts to harsh environments and can withstand multiple drops of ≥1.2 meters.
- 04
Highly customizable; colors, straps, scan engine, and packaging can all be customized.
- 05
Scan engine source factory, one-stop solution for software customization, technical support, and other needs.
Product details
Technical specifications
Physical Parameters
- Size
- 162.6mm×88.3mm×66mm
- Weight
- 160g
- Voltage
- DC5V 5%
- Cable
- 1.8m
- Interfaces
- USB
- Scan Feedback
- Indicator light; Buzzer
Performance Parameters
- Sensor
- CMOS 640×480
- Resolution
- ≥5mil
- Light Source
- Aiming:Green LED; Illumination:White LED
- Field of View
- 42°(H)×31°(V)
- Pitch / Skew / Roll
- Pitch:±55°, Skew:±55°, Roll: 360°
- Print Contrast
- ≥25%
- Depth of Field
- EAN-13 55mm-200mm(13mil); PDF417 30mm-110mm(6.67mil); Code39 45mm-80mm(5mil ); Data Matrix 40mm-100mm(10mil)
Decoding Types
- 1D Code
- EAN,UPC,Code 39,Code 93,Code 128,Codabar,Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN,MSI-Plessey,GS1 Databar ,Code 11, Industrial 2 of 5,Standard 2 of 5,Matrix 2 of 5
- 2D Code
- QR Code,Micro QR,Data Matrix,PDF417,Aztec,Micro FDF417
Environmental Parameters
- Operating Temperature
- -20℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5% to 95 %non-condensing
- Shock Resistance
- Designed to withstand 1.2m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where HC-700 fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about HC-700
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can HC-700 read?
HC-700 supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: QR Code,Micro QR,Data Matrix,PDF417,Aztec,Micro FDF417.
02Which interfaces are available for HC-700?
Available interface options include USB. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is EAN-13 55mm-200mm(13mil); PDF417 30mm-110mm(6.67mil); Code39 45mm-80mm(5mil ); Data Matrix 40mm-100mm(10mil). Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is HC-700 right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
