HC-880BT

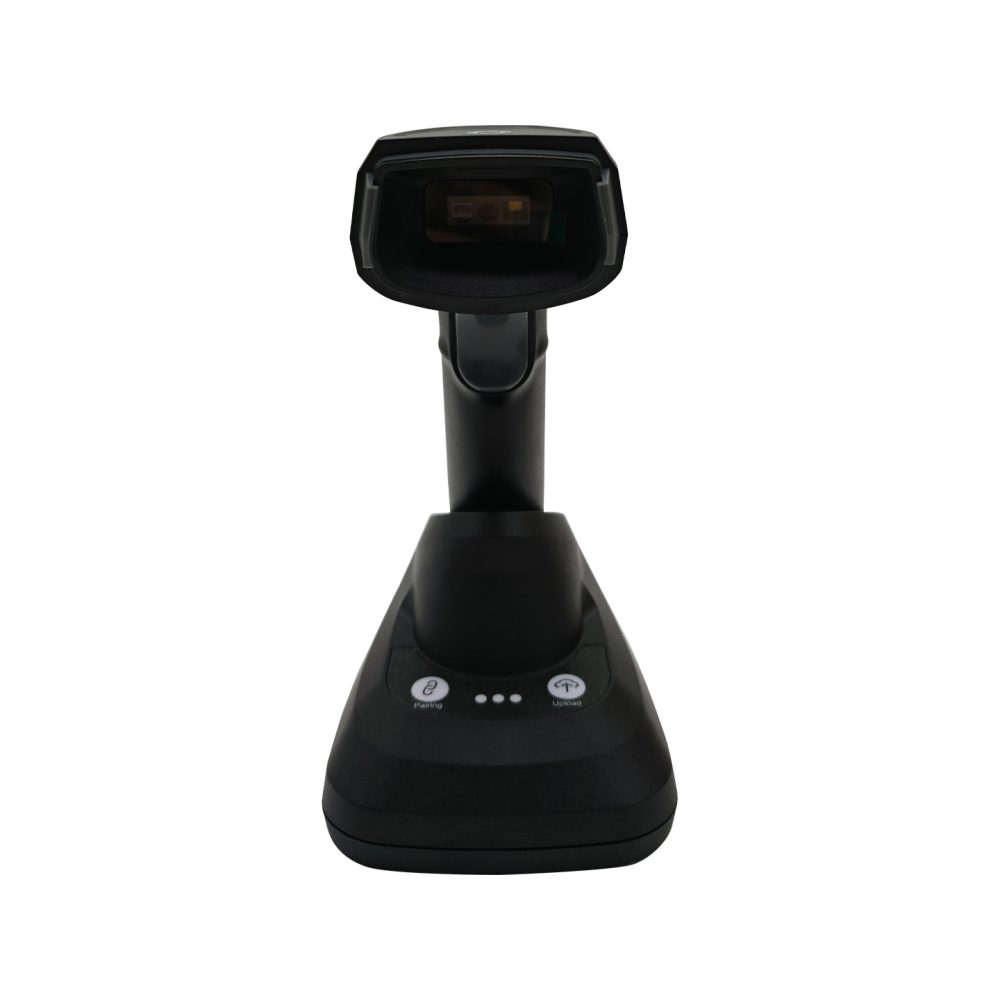

HC-880BT Wireless Handheld Barcode Scanner
Handheld Barcode Scanners / HC-880BT
HC-880BT is a wireless handheld barcode scanner featuring CMOS 640x480 120FPS, USB,2.4g,Bluetooth,Charging base, ≥4mil.
- Sensor
- CMOS 640x480 120FPS
- Resolution
- ≥4mil
- Interfaces
- USB,2.4g,Bluetooth,Charging base
- Battery Capacity
- 2000mAh
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose HC-880BT
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
Supports 2.4G and Bluetooth wireless connectivity.
- 02
3MP high resolution (640×480) with a high frame rate up to 120 FPS.
- 03
Powerful performance, supports various barcodes and QR codes.
- 04
Supports multiple scanning prompts: vibration alert, buzzer and indicator light.
- 05
Multiple charging modes: USB charging, base charging, independent battery charging.
- 06
Removable battery, allowing for quick battery swapping and reducing usage costs.
- 07
Long-lasting battery life, automatic deep sleep in idle state for power saving and energy efficiency.
Product details
Technical specifications
Physical Parameters
- Size
- Body: 83×70×178 mm
- Weight
- Body:197g Base:122g
- Voltage
- DC5V 5%
- Battery Capacity
- 2000mAh
- Interfaces
- USB,2.4g,Bluetooth,Charging base
- Scan Feedback
- Indicator light; Buzzer; Vibration
Performance Parameters
- Sensor
- CMOS 640x480 120FPS
- Resolution
- ≥4mil
- Scan Speed
- >2.5m/s
- Light Source
- Aiming:617nm Red LED; Illumination:6500K White LED
- Field of View
- 34°(H)x26°(V)
- Pitch / Skew / Roll
- Pitch:±55°, Skew:±55°, Roll: 360°
- Print Contrast
- ≥25%
- Charging Time
- 5-6H
- Depth of Field - EAN-13
- 40mm-280mm(13mil)
- Depth of Field - PDF417
- 20mm-140mm(6.67mil)
- Depth of Field - Code39
- 25mm-100mm(5mil )
- Depth of Field - QR Code
- 10mm-260mm(20mil)
Decoding Types
- 1D Code
- EAN, UPC,Code 39,Code 93,Code 128, Codabar Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-Plessey,GS1 Databar, Code 11, Industrial 2 of 5, Standard 2 of 5,Matrix 2 of 5
- 2D Code
- QR Code, Data Matrix, PDF417,Aztec, Micro QR, Micro PDF417, Maxi Code,Hanxin
Environmental Parameters
- Operating Temperature
- -20°℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5%to 95%non-condensing
- Shock Resistance
- Designed to withstand 1.8m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where HC-880BT fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about HC-880BT
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can HC-880BT read?
HC-880BT supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: QR Code, Data Matrix, PDF417,Aztec, Micro QR, Micro PDF417, Maxi Code,Hanxin.
02Which interfaces are available for HC-880BT?
Available interface options include USB,2.4g,Bluetooth,Charging base. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is 40mm-280mm(13mil). Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20°℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is HC-880BT right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
