HC-881BT

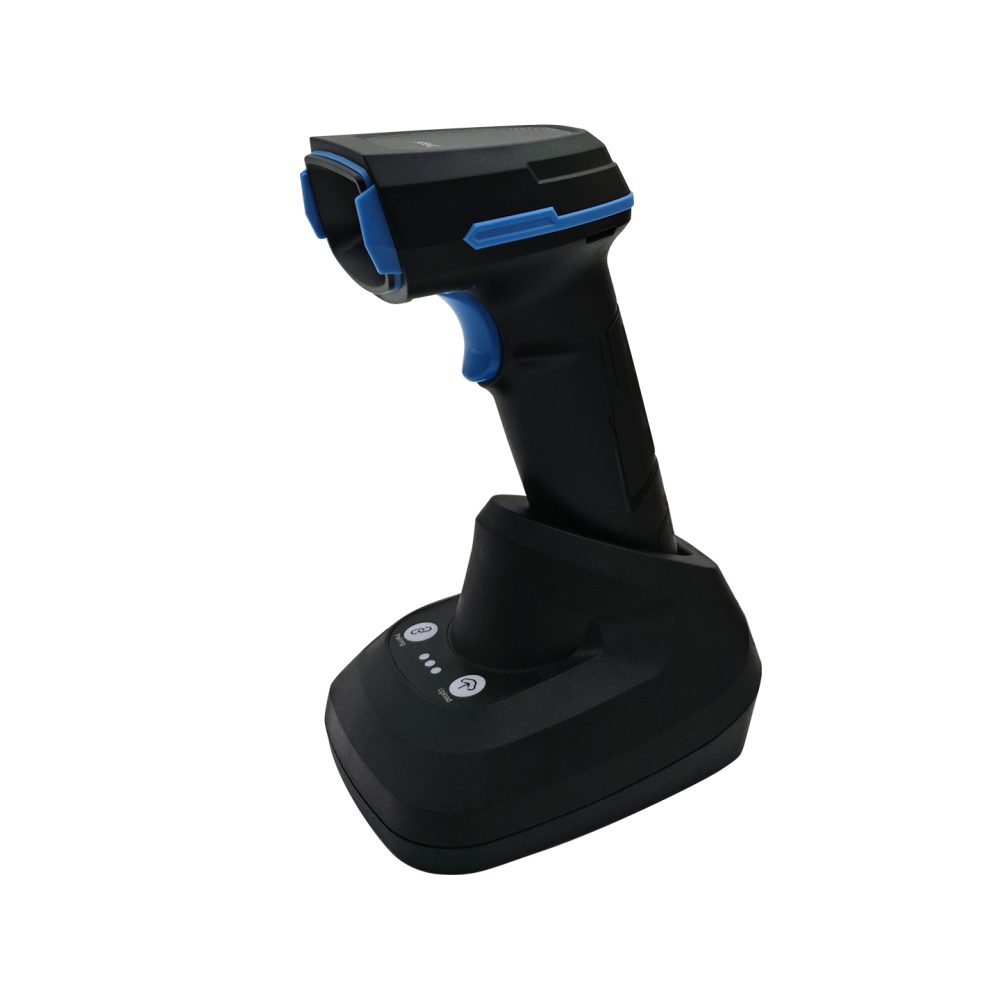

HC-881BT Wireless Handheld Barcode Scanner
Handheld Barcode Scanners / HC-881BT
HC-881BT is a wireless handheld barcode scanner featuring CMOS 1280×800, USB,Bluetooth,2.4G, 1D≥4mil 2D≥6mil.
- Sensor
- CMOS 1280×800
- Resolution
- 1D≥4mil 2D≥6mil
- Interfaces
- USB,Bluetooth,2.4G
- Battery Capacity
- 2000mAh
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose HC-881BT
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
1MP high resolution, delivering clear imaging and stable scanning performance.
- 02
Supports 2.4G and Bluetooth wireless connectivity.
- 03
Powerful performance, supports various barcodes and QR codes.
- 04
Supports multiple scanning prompts: vibration alert, buzzer and indicator light.
- 05
Multiple charging modes: USB charging, base charging, independent battery charging.
- 06
Removable battery, allowing for quick battery swapping and reducing usage costs.
- 07
Long-lasting battery life, automatic deep sleep in idle state for power saving and energy efficiency.
Product details
Technical specifications
Physical Parameters
- Size
- 83×70×178 mm
- Weight
- 201g
- Voltage
- DC5V 5%
- Battery Capacity
- 2000mAh
- Interfaces
- USB,Bluetooth,2.4G
- Scan Feedback
- Indicator light; Buzzer; Vibration
Performance Parameters
- Sensor
- CMOS 1280×800
- Resolution
- 1D≥4mil 2D≥6mil
- Light Source
- Aiming:617nm Red LED; Illumination:6500K White LED
- Field of View
- 42°(H)x31°(V)
- Pitch / Skew / Roll
- Pitch:±55°, Skew:±55°, Roll: 360°
- Print Contrast
- ≥20%
- Depth of Field - EAN-13
- 45mm-320mm(13mil)
- Depth of Field - PDF417
- 50mm-200mm(6.67mil)
- Depth of Field - Code39
- 55mm-160mm(5mil）
- Depth of Field - Data Matrix
- 50mm-120mm(10mil)
Decoding Types
- 1D Code
- EAN-13,EAN-8,UPC-A,UPC-E,ISBN,ISSN,Code128,Code 39,Code 93, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5, Codabar,Code11,GS1 Databar,MSI-Plessey,Pharma code,Telepen, Trioptic code,Postal Code,GS1 Databar,GS1 Compsite code
- 2D Code
- QR Code, Data Matrix, PDF417,Aztec, Micro QR, Micro PDF417, Maxi Code,Hanxin ,GM code
- OCR
- OCR-A/-B
Environmental Parameters
- Operating Temperature
- -20℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5% to 95% non-condensing
- Shock Resistance
- Designed to withstand 1.8m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where HC-881BT fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about HC-881BT
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can HC-881BT read?
HC-881BT supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: QR Code, Data Matrix, PDF417,Aztec, Micro QR, Micro PDF417, Maxi Code,Hanxin ,GM code.
02Which interfaces are available for HC-881BT?
Available interface options include USB,Bluetooth,2.4G. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is 45mm-320mm(13mil). Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is HC-881BT right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
