Best-fit applications
Retail checkout, warehouse receiving, manufacturing, ticketing, healthcare, and general-purpose barcode capture.
San Cristobal Bolivarian Republic of Venezuela +9855 677 8345 manster420@example.com
HC-882

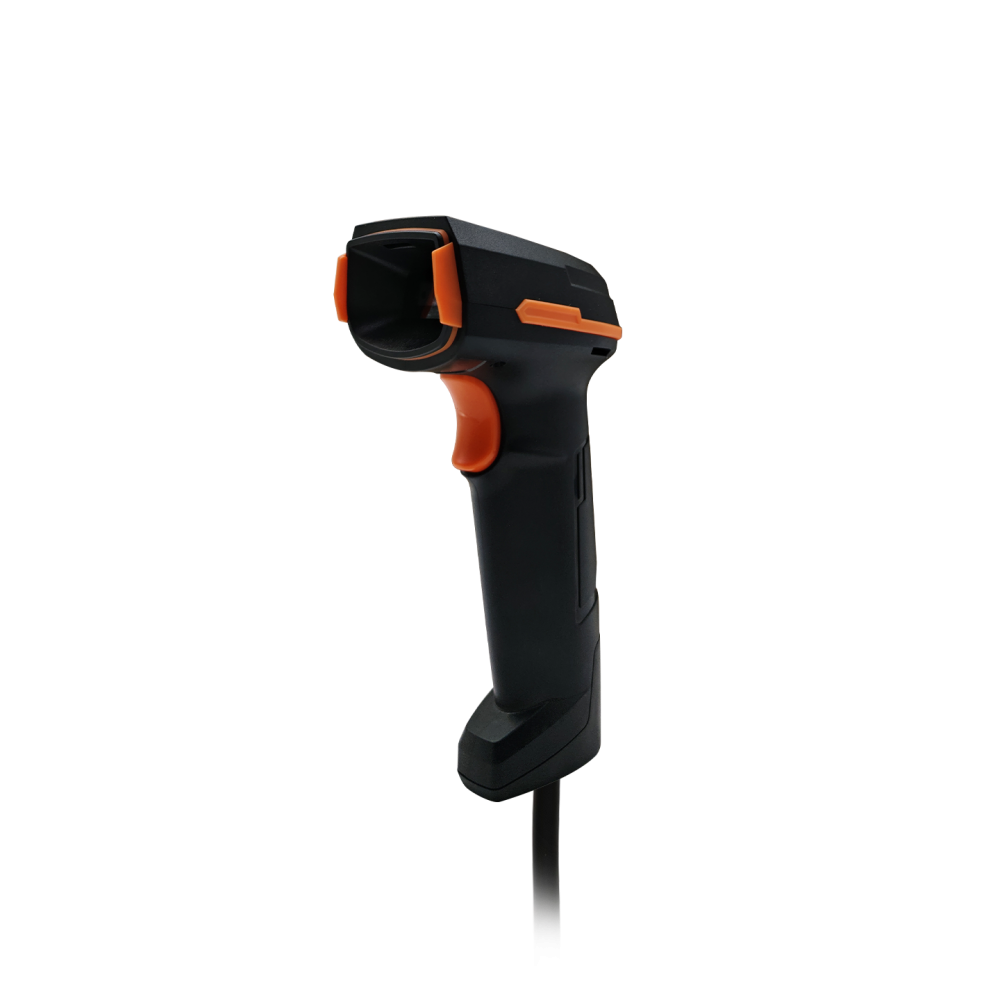

HC-882 Wired Handheld Barcode Scanner
Handheld Barcode Scanners / HC-882
HC-882 is a wired handheld barcode scanner featuring CMOS 1288×1088 60 FPS, USB, ≥4mil.
- Sensor
- CMOS 1288×1088 60 FPS
- Resolution
- ≥4mil
- Interfaces
- USB
- Size
- 83×70×178 mm
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose HC-882
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
3MP high resolution with 1288×1088 pixel definition.
- 02
Integrated AI chip with deep learning algorithm, delivering excellent DPM.
- 03
Adopts laser cross aiming technology for faster and more accurate barcode scanning decoding performance.
- 04
Ergonomic design, long term holding without fatigue.
- 05
Sturdy and durable, can withstand multiple drops from a height of 1.8 meters.
- 06
Ideal for industrial manufacturing, product traceability, logistics, warehousing and other fields.
Product details
Technical specifications
Physical Parameters
- Size
- 83×70×178 mm
- Weight
- 150g
- Cable
- 1.8m
- Voltage
- DC5V 5%
- Interfaces
- USB
- Scan Feedback
- Indicator light ; Buzzer ; Vibration
Performance Parameters
- Sensor
- CMOS 1288×1088 60 FPS
- Resolution
- ≥4mil
- Light Source
- Aiming:617nm laser; Illumination:6500K White LED
- Field of View
- 35.5°(H)x30.2°(V)
- Print Contrast
- ≥25%
- Depth of Field - Code 39
- 40~120 mm(5mil)
- Depth of Field - Code 128
- 15 ~250 mm (10 mil)
- Depth of Field - EAN13
- 30~280 mm(13 mil)
- Depth of Field - QR Code
- 35~155 mm(10 mil)
Decoding Types
- 1D Code
- Code39,Code93,Code128,EAN-8,EAN- 13,Interleaved 2 of 5,UPC, Pharma code,Codabar
- 2D Code
- QR code,DataMatrix,Maxicode,Aztec,Micro QR,PDF417
Environmental Parameters
- Operating Temperature
- -20℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5% to 95% non-condensing
- Shock Resistance
- Designed to withstand 1.8m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where HC-882 fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about HC-882
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can HC-882 read?
HC-882 supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: QR code,DataMatrix,Maxicode,Aztec,Micro QR,PDF417.
02Which interfaces are available for HC-882?
Available interface options include USB. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is 40~120 mm(5mil). Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is HC-882 right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
