HC-882BTP

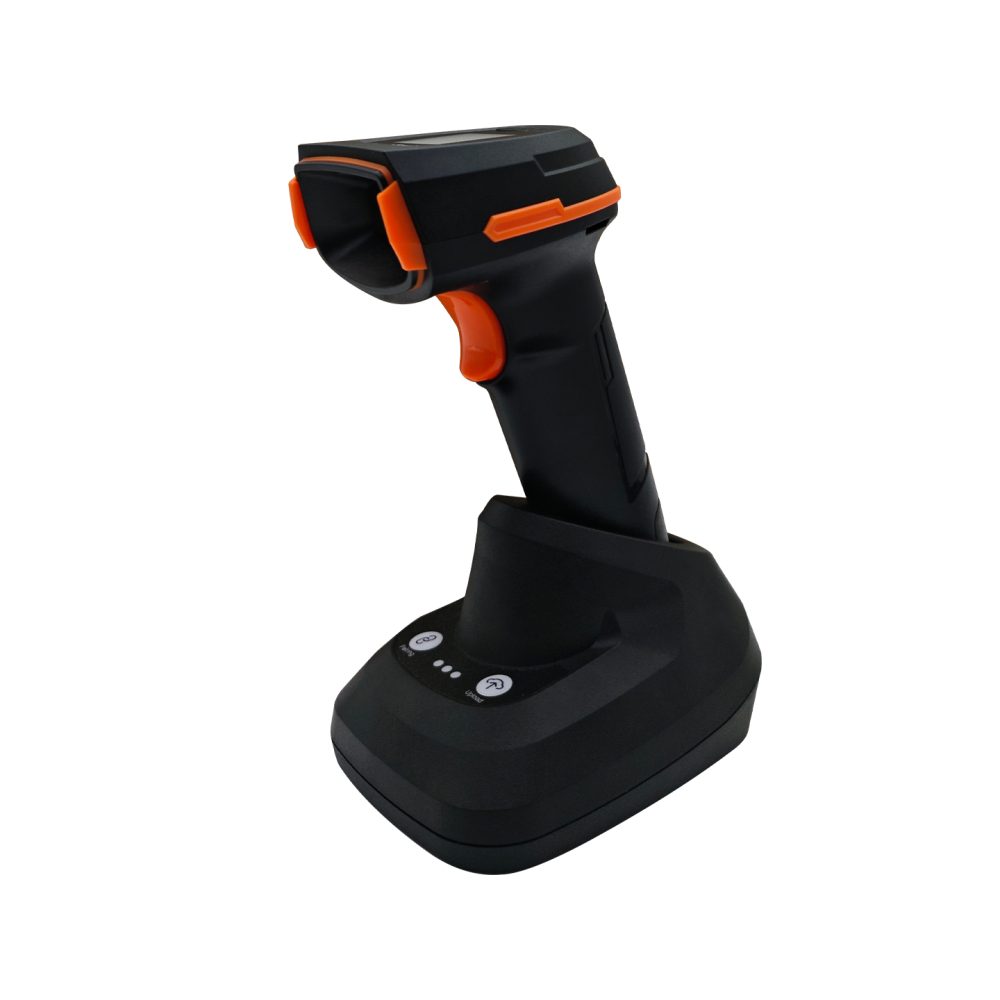

HC-882BTP Wireless Handheld Barcode Scanner
Handheld Barcode Scanners / HC-882BTP
HC-882BTP is a wireless handheld barcode scanner featuring CMOS 1288×1088 60 FPS, USB,2.4G,Bluetooth,Charging base, ≥4mil.
- Sensor
- CMOS 1288×1088 60 FPS
- Resolution
- ≥4mil
- Interfaces
- USB,2.4G,Bluetooth,Charging base
- Battery Capacity
- 2000mAh
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose HC-882BTP
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
Supports 2.4G wireless and Bluetooth, charging base.
- 02
3MP high resolution with 1288×1088 pixel definition. Adopts laser cross aiming
- 03
Integrated AI chip with deep learning algorithm, delivering excellent DPM decoding performance.
- 04
Built-in screen design allows for intuitive viewing of barcode data, battery level, number of barcodes, time, and other information.
- 05
Features button design, allowing direct setup of required function parameters without the manual.
- 06
Long-distance transmission, Wireless bluetooth is about 50-100 meters.
- 07
Removable battery, allowing for quick battery swapping and reducing usage costs.
Product details
Technical specifications
Physical Parameters
- Size
- Body: 83×70×178 mm
- Weight
- Body:197g Base:122g
- Voltage
- DC5V 5%
- Battery Capacity
- 2000mAh
- Interfaces
- USB,2.4G,Bluetooth,Charging base
- Scan Feedback
- Indicator light; Buzzer;Vibration
Performance Parameters
- Sensor
- CMOS 1288×1088 60 FPS
- Resolution
- ≥4mil
- Light Source
- Aiming:617nm Laser; Illumination:6500K White LED
- Field of View
- 35.5°(H)x30.2°(V)
- Print Contrast
- ≥25%
- Charging Time
- 5-6H
- Depth of Field - Code 39
- 40~120 mm(5mil)
- Depth of Field - Code 128
- 15 ~250 mm (10 mil)
- Depth of Field - EAN13
- 30~280 mm(13 mil)
- Depth of Field - QR Code
- 35~155 mm(10 mil)
Decoding Types
- 1D Code
- Code39,Code93,Code128,EAN-8,EAN- 13,Interleaved 2 of 5,UPC, Pharma code,Codabar
- 2D Code
- QR code,Data Matrix,Maxicode,Aztec,Micro QR,PDF417
Environmental Parameters
- Operating Temperature
- -20℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5% to 95% non-condensing
- Shock Resistance
- Designed to withstand 1.8m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where HC-882BTP fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about HC-882BTP
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can HC-882BTP read?
HC-882BTP supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: QR code,Data Matrix,Maxicode,Aztec,Micro QR,PDF417.
02Which interfaces are available for HC-882BTP?
Available interface options include USB,2.4G,Bluetooth,Charging base. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is 40~120 mm(5mil). Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is HC-882BTP right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
