Best-fit applications
Retail counters, payment desks, pharmacies, libraries, reception areas, and fast presentation scanning.
San Cristobal Bolivarian Republic of Venezuela +9855 677 8345 manster420@example.com
T880B

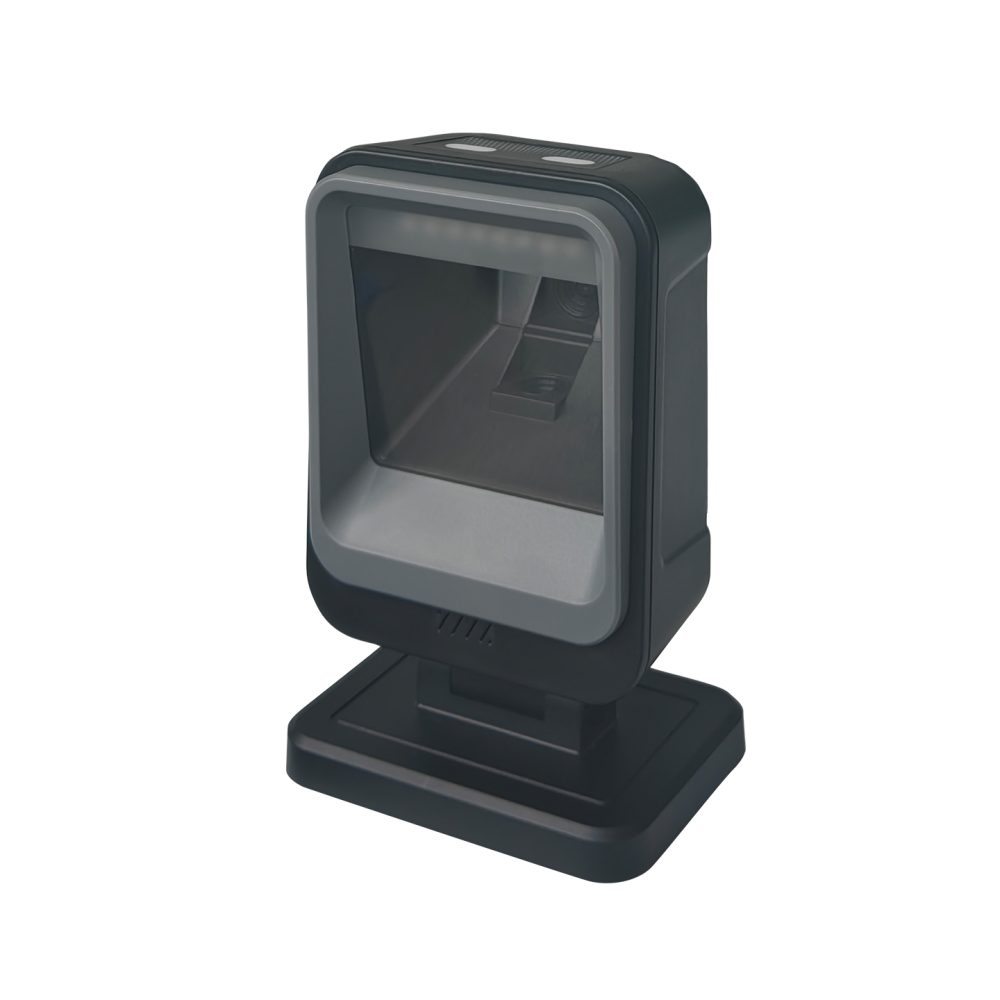

T880B Desktop Barcode Scanner
Desktop Barcode Scanners / T880B
T880B is a desktop barcode scanner featuring CMOS 640x480, USB; 2.4G; Bluetooth, ≥4mil.
- Sensor
- CMOS 640x480
- Resolution
- ≥4mil
- Interfaces
- USB; 2.4G; Bluetooth
- Battery Capacity
- 2000 mAh
Need integration confirmation? Send us your barcode type, interface, scanning distance, and installation requirements.
Product features
Why choose T880B
Key advantages for faster scanning, easier integration, and dependable daily operation.
- 01
Supports 2.4G wireless & Bluetooth connection
- 02
2000mAh large battery, sufficient for a full workday
- 03
Low power consumption, high performance, and high stability.
- 04
Rapid and accurate reading of product codes, payment codes, damaged codes, stained codes, reflee codes, and other special barcodes.
- 05
Suitable for supermarkets, express delivery, factories, pharmacies, and warehouses.
- 06
The viewie can rotate ≥40° , can be adjusted to a suitable position.
- 07
Auto sleep, LED turns off automatically after a set period of inactivity.
Product details
Technical specifications
Physical Parameters
- Size
- 98mm×72mm×152mm
- Weight
- 402g
- Voltage
- DC5V 5%
- Interfaces
- USB; 2.4G; Bluetooth
- Battery Capacity
- 2000 mAh
- Scan Feedback
- Indicator light; Buzzer
Performance Parameters
- Sensor
- CMOS 640x480
- Resolution
- ≥4mil
- Scan Speed
- >2.5m/s
- Light Source
- White LED
- Field of View
- 56°(D) ×47°(H)× 36°(V)
- Pitch / Skew / Roll
- Pitch:±60°, Skew:±60°, Roll: 360°
- Print Contrast
- ≥25%
- Operating Distance
- Open Distance 0-60m
- Continuous Working Time
- 8H(Continuous scanning at 5-second intervals)
- Charging Duration
- 5-6H
- Depth of Field - EAN13
- 0-16cm（13mil）
- Depth of Field - Code39
- 1-5cm （5mil）
Decoding Types
- 1D Code
- EAN, UPC,Code 39,Code 93,Code 128,Codabar,Matrix 2 of 5, Interleaved 2 of 5,ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey, GS1 Databar,Code 11,Industrial 2 of 5,Standard 2 of 5
- 2D Code
- QR Code, Data Matrix, PDF417,Aztec, Micro QR, Micro PDF417, Maxi Code,Hanxin
Environmental Parameters
- Operating Temperature
- -20°℃ to 50℃
- Storage Temperature
- -40℃ to 70℃
- Humidity
- 5%to 95%non-condensing
- Shock Resistance
- Designed to withstand 1.5m drops
- Ambient Light
- 0-100,000 Lux.
Application planning
Where T880B fits best
Integration checklist
Confirm barcode samples, working distance, host device, interface, power, mounting space, cable routing, and ambient lighting before final selection.
Customization support
Engineering support is available for firmware settings, SDK integration, cables, connectors, housings, logos, and OEM/ODM production.
FAQ
Frequently asked questions about T880B
Practical answers about compatibility, installation, customization, and ordering.
Ask another question01What barcode types can T880B read?
T880B supports common 1D barcode symbologies for retail, logistics, manufacturing, and access-control applications. Supported 2D formats include: QR Code, Data Matrix, PDF417,Aztec, Micro QR, Micro PDF417, Maxi Code,Hanxin.
02Which interfaces are available for T880B?
Available interface options include USB; 2.4G; Bluetooth. Tell us your host device, preferred connector, and cable length so we can recommend the right configuration.
03Will it work with my operating system or host device?
Compatibility depends on the selected interface and communication mode. Tell us whether the host is Windows, Linux, Android, iOS, a microcontroller, PLC, POS terminal, or industrial computer so we can verify the setup.
04How do I confirm the required scanning distance?
The supported scanning range is 0-16cm（13mil）. Performance can vary with barcode size, density, contrast, surface, and ambient light.
05What environmental limits should I design for?
The operating temperature range is -20°℃ to 50℃. For demanding environments, also consider storage temperature, humidity, ambient light, sealing, and drop resistance.
06Can I order a sample before mass production?
Yes. You can order a sample to test barcode performance, interface compatibility, mounting, and software integration before moving to volume production.
07Can the firmware, cable, enclosure, or logo be customized?
Yes. CodeScanTech supports firmware configuration, cables, connectors, enclosures, labels, logos, and OEM/ODM manufacturing. Feasibility and minimum quantities depend on the requested change.
08What information should I send for an integration recommendation?
Send the barcode types and samples, nearest and farthest scan distance, host device and operating system, preferred interface, available power, mounting space, expected environment, and estimated order quantity.
From sample to production
Is T880B right for your application?
Share your barcode type, scanning distance, interface, and installation requirements with our team.
